| Construction Details | |
| Conductor | |
| Size | 18 AWG |
| Stranding | Solid |
| Nom. Diameter | 0.040 in |
| Material | BCCS - Bare Copper Covered Steel |
| Insulation | |
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 0.180 in (4.57 mm) |
| Color Code | White |
| Outer Jacket | |
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.303 in (7.70 mm) |
| Overall Cable Diameter (Nominal) | 0.303 in (7.70 mm) |
| Electrical Characteristics | |
| Return Loss | |
| Frequency | 5 - 50 MHz |
| Min. Structural Return Loss | 23 dB |
| Electricals | |
| Nom. Conductor DCR | 28 Ohm/1000ft |
| Nom. Outer Shield DCR | 2.6 Ohm/1000ft (8.5 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 16.2 pF/ft (53.1 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 83% |
| Voltage | |
| UL Voltage Rating | 300 V (CMR, CMG) |
| Mechanical Characteristics | |
| Temperature | |
| UL Temperature | 75°C |
| Operating | -30°C to +75°C |
| Bend Radius | |
| Installation Min. | 3 in (76 mm) |
| Max. Pull Tension | 162 lbs (73.5 kg) |
| Bulk Cable Weight | 33 lbs/1000ft |

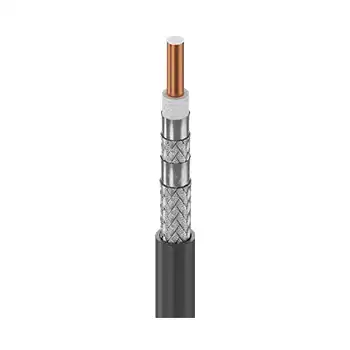

3092A
Product Number : 3092A
ControlBus™, Coax RG-6, #18 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR
Coax RG-6 18 AWG (Solid) Bare Copper Covered Steel, Foam PE Insulation, Overall Duobond® II+Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVC Outer Jacket, CMR
WhatsApp us
Product Overview
Suitable Applications:
harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications
Standards and Compliance
Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial – When supported by messenger wire |
|---|---|
Sustainability | CA Prop 65 |
Flammability / Reaction to Fire | UL1666 Vertical Shaft |
CPR Compliance | CPR Euroclass: Eca |
NEC / UL Compliance | CMR, CL2R, CMG |
CEC / C(UL) Compliance | CMG |
European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
UK Regulation Compliance | UKCA Mark |
APAC Compliance | China RoHS II (GB/T 26572-2011) |
Plenum Number | 3093A |
