| Construction Details | |
| Conductor | |
| No. of Elements | 1 |
| Size | 20 AWG |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
| Insulation | |
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.019 in (0.48 mm) |
| Nom. Insulation Diameter | 0.0755 in (1.92 mm) |
| Color Code | Clear & Blue |
| Outer Jacket | |
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.037 in (0.94 mm) |
| Nom. Diameter | 0.238 in (6.05 mm) |
| Table Notes | Jacket OD +/- 0.003 |
| Overall Cable Diameter (Nominal) | 0.238 in (6.05 mm) |
| Electrical Characteristics | |
| Electricals | |
| Nom. Conductor DCR | 9.5 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. Capacitance Cond-to-Shield | 37 pF/ft |
| Nom. Capacitance | 36 pF/ft |
| Nom. Outer Shield DCR | 4.1 Ohm/1000ft (13 Ohm/km) |
| Voltage | |
| UL Voltage Rating | 300 V (CM, CL2), 300 V (UL AWM 2464) |
| Mechanical Characteristics | |
| Temperature | |
| UL Temperature | 80°C |
| Operating | -40°C to +80°C |
| Installation | -40°C To +80°C |
| Storage | -40°C to +80°C |
| Bend Radius | |
| Stationary Min. | 2.4 in (61 mm) |
| Installation Min. | 2.4 in (61 mm) |
| Max. Pull Tension | 48 lbs (22 kg) |
| Bulk Cable Weight | 36 lbs/1000ft |
9463
Product Number : 9463

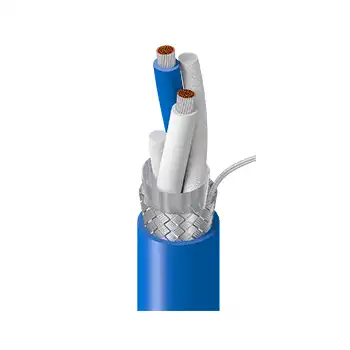

Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Brd, PVC Jkt, CM
Blue Hose® for Data Highway Plus, 1 Pair 20AWG (7×28) Tinned Copper, PE Insulation Blue & Clear, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, Blue PVC Outer Jacket, CM
WhatsApp us
Product Overview
Suitable Applications:
harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.
Standards and Compliance
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 UL Loading, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 725, Article 800, CM, CL2 |
|
AWM Compliance |
AWM 2464 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
Other Standard Compliance(s) |
P-7K-SC-182141-MSHA, Allen Bradley Part No. 1770-CD |
|
Plenum Number |
89463 |
