| Materials | |
| Contact Base Material | CuZn |
| Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Housing Material | PA GF |
| Housing Color | Translucent |
| Flammability Class (Housing) | UL 94 HB |
| Cable Gland Material | PA GF |
| Cable Gland Gasket | NBR |
| Cable Gland Color | Grey |
| Attachment Material | Steel, Philips combi slot |
| Gasket Material | Sold separately |
| Circuitry | |
| Function Indicator | Red LED |
| Fastening Torque (Contact Screw) | (50-60) Ncm |
| Fastening Torque (Cable Gland) | (250-375) Ncm |
| ULFastening Torque (Attachment) | (50-60) Ncm |
| Approvals | |
| VDE | Yes |
| SEV | Yes |
| Safety & Environmental Compliance | |
| RoHS Compliant | Yes |

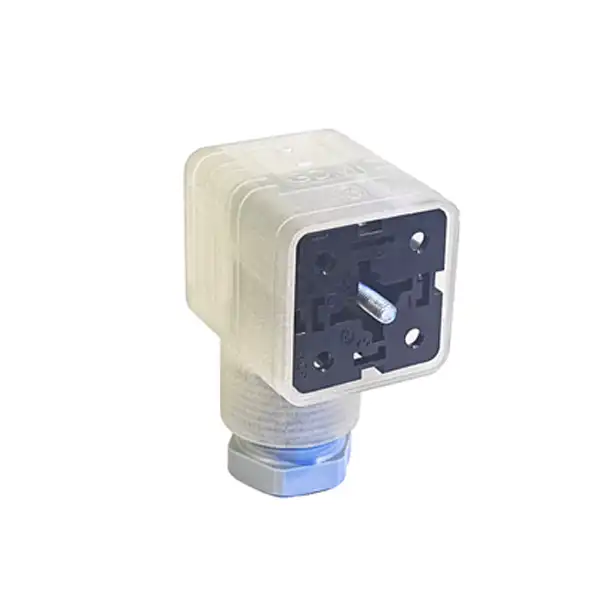

GDML 2016 LED 24 grey
Product Number : GDML 2016 LED 24 grey
GDM Legacy- 175301-803 (DIN 43650), Form A, 18mm, 2 Pole+Ground (Protective Earth), Translucent Housing, M16 Grey Gland Nut, PCBA with Red LED, 24V | 8 A, Steel Center Screw, Bulk Packaging
GDM Legacy- 175301-803 (DIN 43650), Form A, 18mm, 2 Pole+Ground (Protective Earth), Translucent Housing, M16 Grey Gland Nut, PCBA with Red LED, 24V | 8 A, Steel Center Screw, Bulk Packaging
WhatsApp us
Technical Data
|
Product Family |
Valve Connectors |
|---|---|
|
Product Sub Family |
GDM Legacy |
|
Connector Type |
Field Attachable |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
2+PE (PE across cable outlet) |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Replaced by |
PF_GDM21L6-L1C-10D |
|
Rated Voltage |
24 V |
|
Rated Impulse Voltage |
4.0 kV (PCBA 2.0 kV) |
|
Operating Voltage |
24 V AC/DC |
|
Rated Current* |
8 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Type of Connection |
Screw |
|
Cable Gland |
M16 |
|
Conductor Cross Section |
0.25 – 1.5 mm² |
|
Suitable Cables |
Ø 4.5 – 10 mm |
|
Ambient Temperature (Operation)* |
-25°C to +80°C |
|
Protection Degree / IP Rating** |
IP65 |
|
Design Standard |
DIN EN 175301-803-A, ISO 4400 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
