KOM600G
Product Number : KOM600G

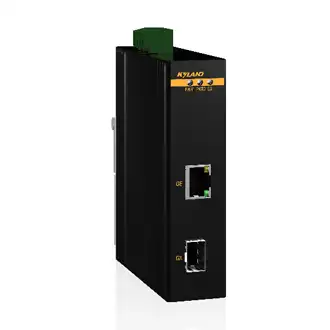

KOM600G 2G port DIN-Rail LFP copper to fiber media converters
Key Features
- Support 1 100M or Gigabit SFP port and 1 10/100/1000Base-TX RJ45 ports
- Support LFP (Link Fault Pass-Through)
- Built-in isolated power supply, Full load power consumption is as low as 2.5 W
- Power inputs with wide voltage range
- Jumbo frame transmission function (up to 9KB)
- EMC level 3
- IP40 protection class
WhatsApp us
Product Overview
KOM600G industrial Gigabit media convertor supports 1 Gigabit SFP port and 1 10/100/1000Base-TX RJ45 ports, and supports LFP (Link Fault Pass-Through). KOM600G provides 12-48VDC models to meet different applications. KOM600G is especially designed for harsh environments with wide (-40°C to 75°C) operating temperature range, EMC level 3, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, it can be deployed in power, transportation, oil & gas and many other industrial applications.
Technical Specification
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3ab(1000Base-T) IEEE 802.3z (1000Base-X) |
| Switch Properties | MAC Table: 2K Jumbo Frame Size: 9KB |
| Interface | Gigabit Port: 1000Base-X, SFP slot 10/100/1000Base-T(X), RJ45 port |
| LED | LEDs on Front Panel Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT (Fiber port) |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption: 2.5W Overload Protection: Support Reverse Protection: Support Redundancy Protection: Support |
| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP40 Dimension: 31mm×114.5mm×94mm (W×H×D) Weight: 0.3Kg Mounting: DIN-Rail or Panel mounting |
| Environmental Limits | Operating Temperature: -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5°C 95% (non-condensing) |
| Quality Assurance | MTBF: 8762929 hrs Warranty: 5 years |
| Approvals | CE, FCC |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS: IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V (150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
