| Materials | |
| Contact Base Material | CuZn |
| Contact Plating | Cu/Au |
| Contact Bearer Material | PBT |
| Contact Bearer Color | white |
| Flammability Class (Contact Bearer) | UL 94 V0 |
| Housing Material | GD-Zn / CuZn Ni |
| Housing Color | silver |
| Attachment Material | CuZn, nickel-plated |
| O-Ring Material | FPM / NBR |
| Safety & Environmental Compliance | |
| RoHS Compliant | yes |
| Fastening Torque (Cable Gland) | (250-375) Ncm |
| ULFastening Torque (Attachment) | (50-60) Ncm |
| Approvals | |
| VDE | Yes |
| SEV | Yes |
| Safety & Environmental Compliance | |
| RoHS Compliant | Yes |
RSC 120/9
Product Number : RSC 120/9

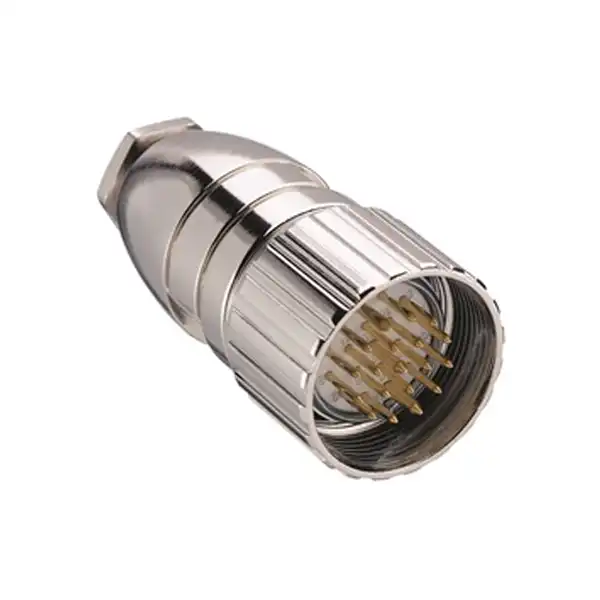

RSC 120/9 M23 Power Field Attachable Connector: Male, straight, 12-pin, silver housing, 120 V AC/DC
M23 Power Field Attachable Connector: Male, straight, 12-pin, silver housing, 120 V AC/DC
WhatsApp us
Face View
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
M23 Power |
|
Connector Type |
Field attachable |
|
Type of Contact / Gender |
male |
|
Connector Design |
straight |
|
Number of Pins |
12 |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling Nut |
|
Rated Voltage |
125 V |
|
Rated Impulse Voltage |
1.5 kV |
|
Operating Voltage |
120 V AC/DC |
|
Rated Current* |
8 A |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Type of Connection |
solder |
|
Cable Gland |
PG 9 |
|
Conductor Cross Section |
max. 1.0 mm² |
|
Suitable Cables |
Ø6 mm to Ø8 mm |
|
Ambient Temperature (Operation)* |
-40°C to +70°C |
|
Protection Degree / IP Rating** |
IP65 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
