Mechanical Drawing
66mm×135mm×107.5mm(W×H×D):
88mm×135mm×137mm(W×H×D):
102mm×135mm×137mm(W×H×D):
SICOM3000A
Product Number : SICOM3000A

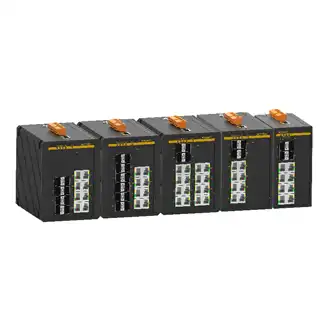

SICOM3000A Layer 2 managed DIN-Rail switches
Key Features
- Supports 100Base-X, 1000Base-X SFP ports
- Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP
- Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification, MAC address binding with switch ports
- Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on SNMPv1/v2c/v3
- Supports Automatic Configuration Backup and Restore
- Supports Hardware-based IEEE1588 PTPv2 (BC, P2P TC, E2E TC clock modes, synchronization precision ±100 ns)
- Supports PROFINET (-PN Model), EtherNet/IP and Modbus/TCP protocols
- Supports DDM(SFP port)
- Supports IP40 protection
- Complies with IEC61850-3 and IEEE1613
- CE, FCC, CB, EN50121-4, UL61010, Class I Div 2, IECEx, ATEX, WEEE certificates
WhatsApp us
Product Overview
SICOM3000A is Layer 2 DIN-Rail Managed Industrial Ethernet Switch. It provides a rich product port portfolio, 6/8/10/12/16/18/20 ports, 100/1000M SFP port, 12/24/48/110/220V power input. SICOM3000A supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. It supports IEEE1588 PTPV2, Automatic Configuration Backup and Restore, DDM(SFP port), PROFINET (-PN Model), EtherNet/IP and Modbus/TCP protocols. SICOM3000A is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be deployed in Factory automation, Transportation, Oil & gas, wind power, distribution network automation and many other industrial applications.
Accessories
Accessory Model | Description |
SFP module | See the selection table of industrial SFP module. |
DT-BGAZ-02 | Panel for panel mounting |
DT-FCZ-RJ45-01 | Single-port RJ45 dust plug |
KyACB-USB-RJ45 | Automatic Configuration Backup tool with RJ45 connector |
