Leaky Feeder & Radiating Cables for Indoor and Tunnel Coverage

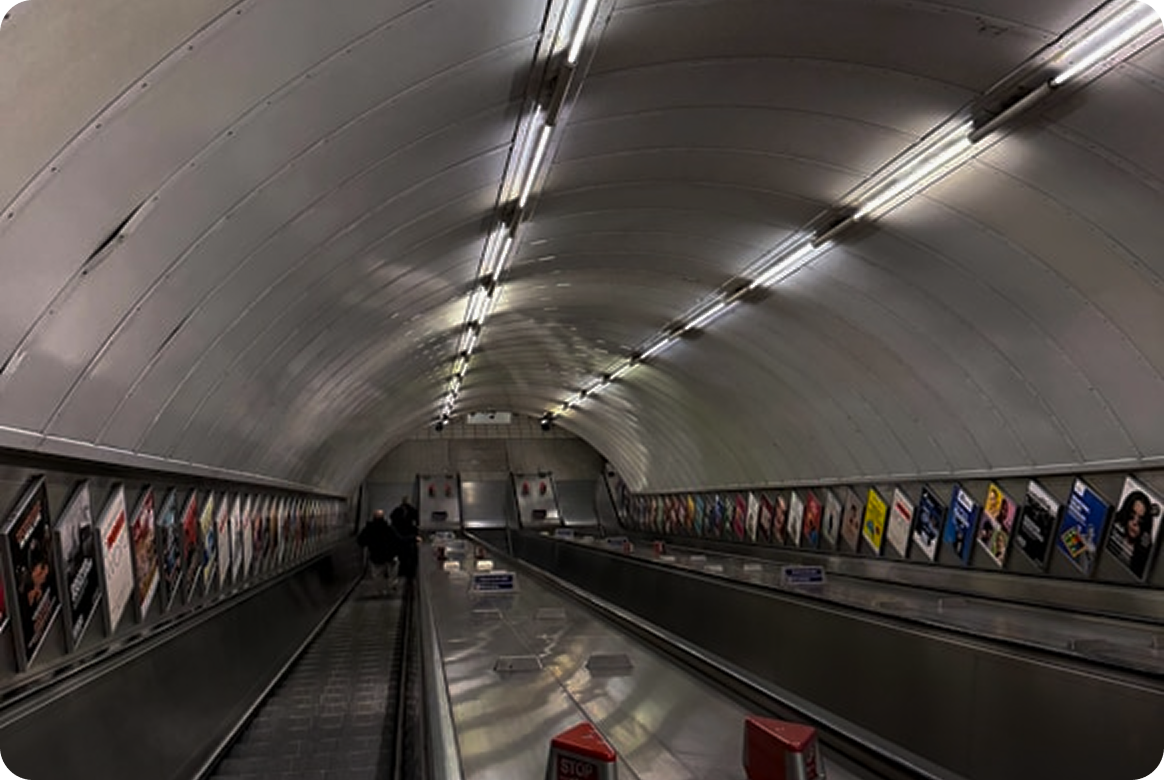

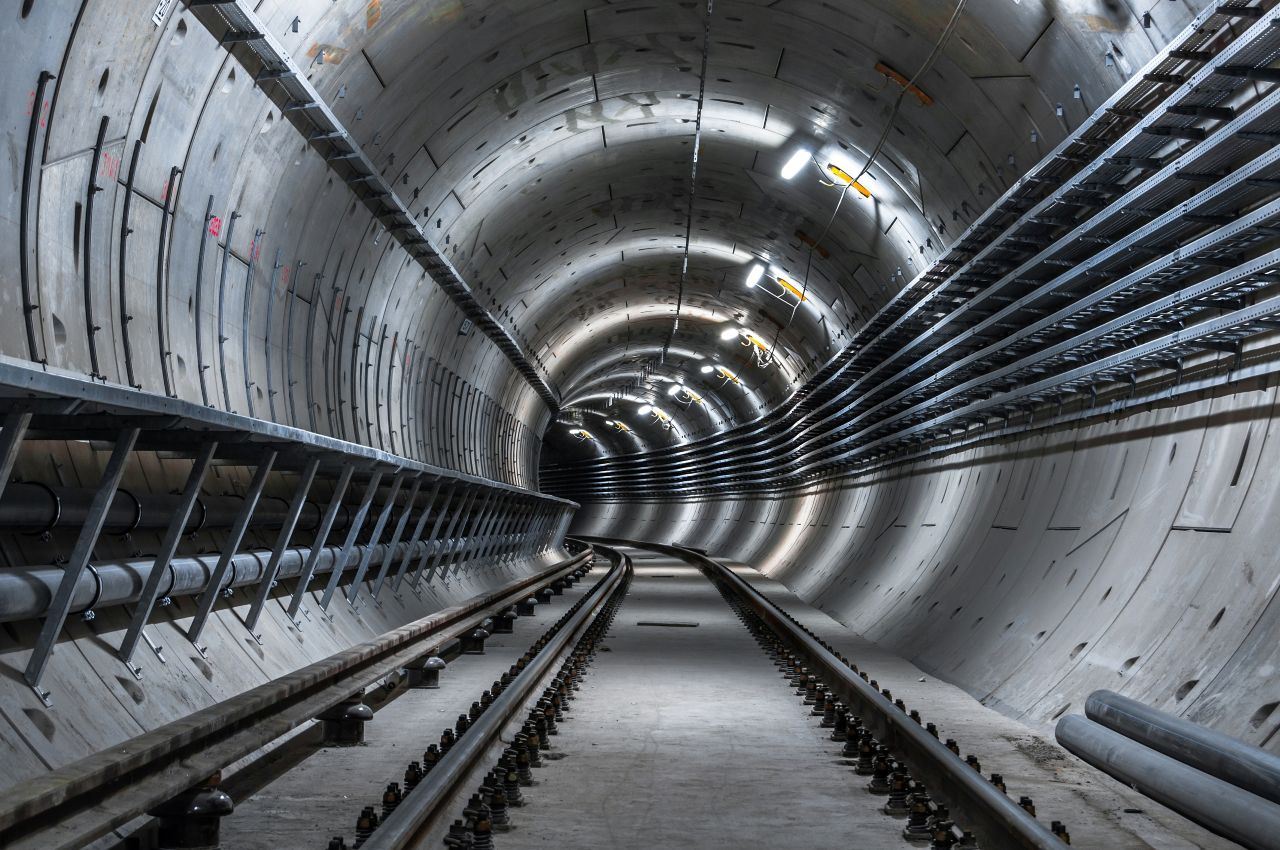

Draka's coaxial antenna product families provide reliable distributed coverage in buildings, tunnels, underground railways, and other
challenging RF environments.

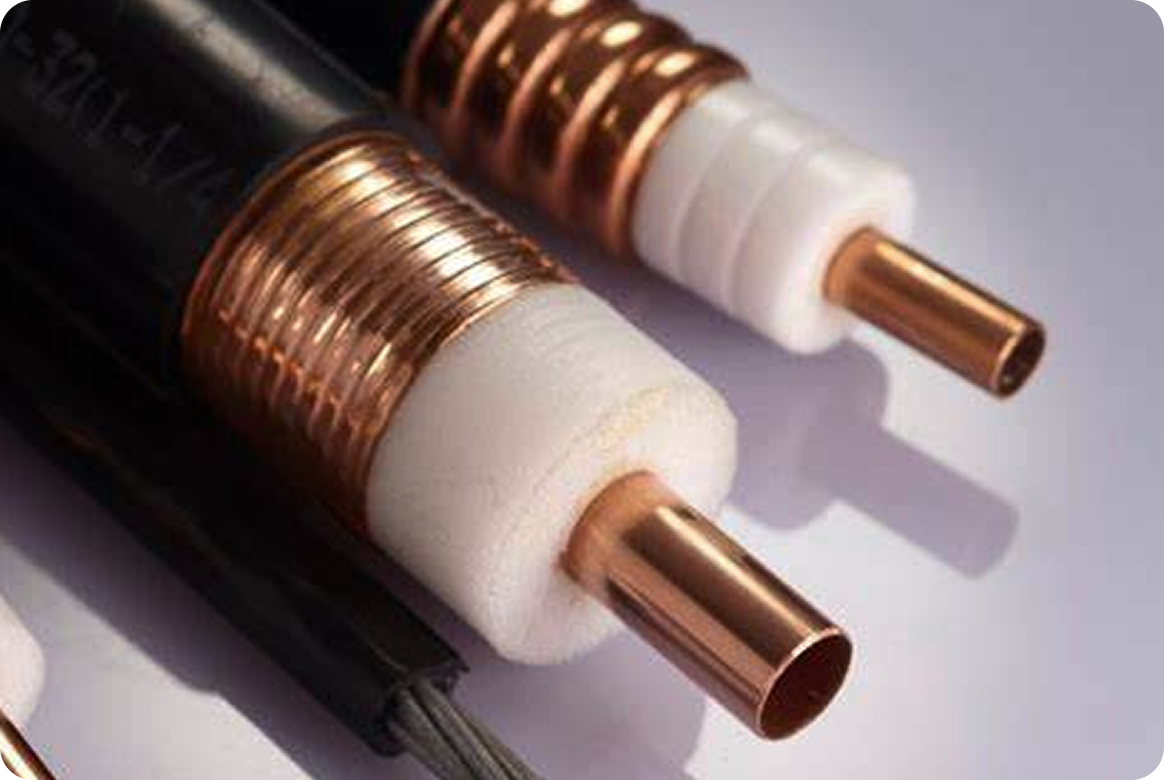

Two technologies are available: coupled-mode cables (RFX / RF2X) with a corrugated and milled slotted outer conductor for broadband and multi-band systems, and radiating-mode cables (RFXT) with a periodically slotted copper tape outer conductor optimised for selected frequency bands.

RFX cables feature slots on one side of the outer conductor; RF2X cables feature dual-sided slots for enhanced radiation. RFXK and RF2XK variants include an integral suspension wire for simplified deployment in long tunnel runs. The key performance metrics — longitudinal attenuation and coupling loss — are validated against IEC 61196-4

Product Variants

RFX 1/2

Wideband indoor leaky feeder, compact profile

RFX 7/8

Wideband leaky feeder for longer tunnel and floor runs

RFX 1 1/4

Low-attenuation trunk leaky feeder for large venues and metro tunnels

RFX 1 5/8

Ultra-low-loss trunk for extended coverage infrastructure

RF2X variants

Dual-slotted for enhanced radiation efficiency (available in 1/2", 7/8", 1 1/4", 1 5/8")

RFXT 7/8" MBHF

Radiating cable for selected frequency bands, fire-rated

RFXT 1 1/4" MBHF

Larger radiating cable for extended tunnel systems

Jacket Options

Halogen

Standard halogen-free PE

BHF

Black halogen-free fire-retardant
thermoplastic

MBHF

Fire-retardant thermoplastic with mica tape fire barrier (designed for life-safety installations)
